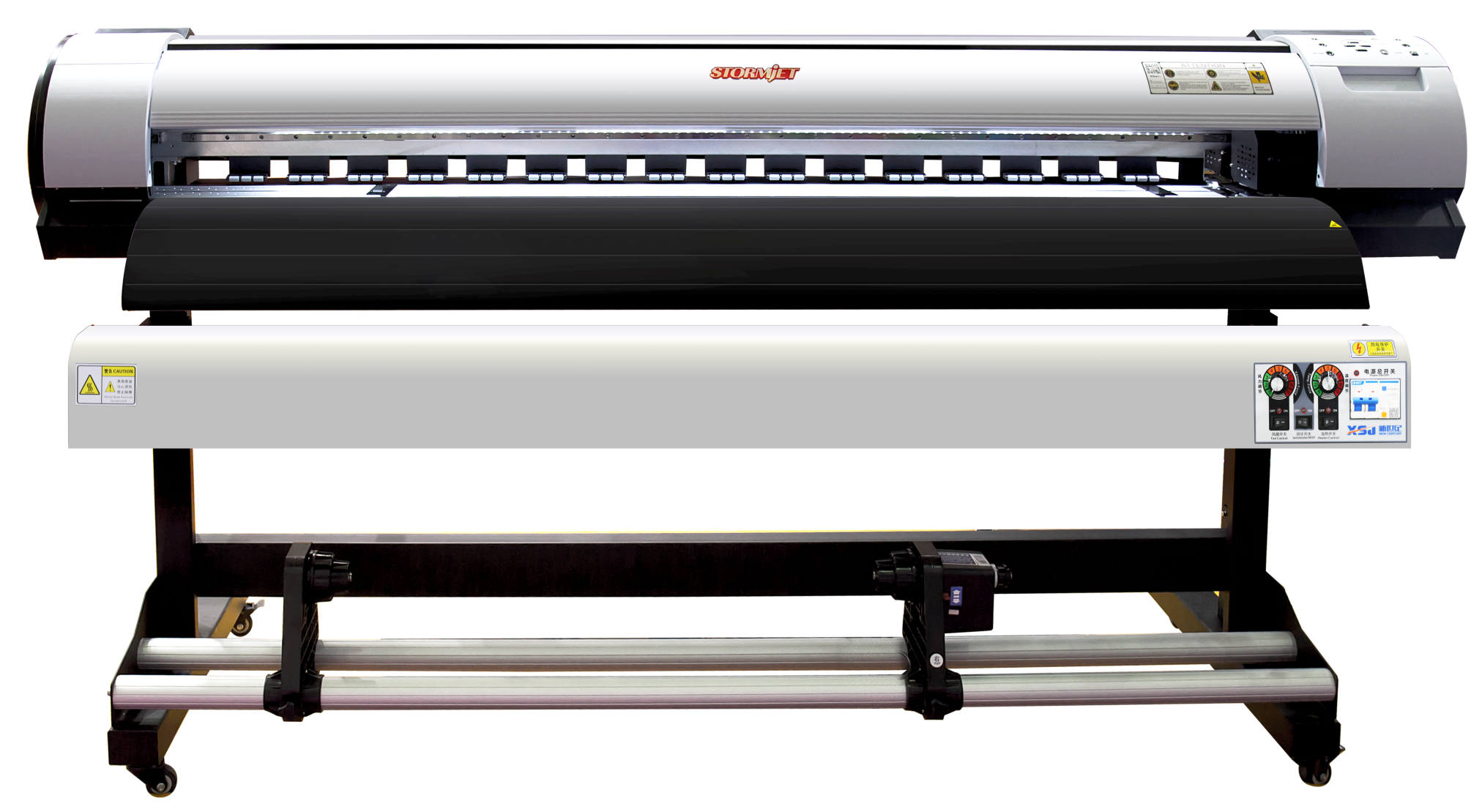

StormJet – 4180 UV Roll to Roll Printer
TECHNICAL SPECIFICATION |
|
Printhead |
Epson Dx5 |
Printhead Quantity |
2 |
Max Resolution |
1440 dpi |
Number of Nozzles |
1440 (8*180) |
Max printing speed |
32 m²/h |
2 head printing speed |
4 pass – 15 m²/h |
CMYK + W |
6 pass – 11 m²/h |
|
8 pass – 8 m²/h |
Printing width |
1800 mm |
Colors |
CMYK + White (optional) |
Ink type |
UV ink |
Printing Materials |
Soft film Curtain, Leather, Textile… All kind of soft material |
Heating System |
3 Section Heating |
Feeding method |
Roll to roll, leaf |
Rip Software |
Maintop * Photoprint * Onyx |
Color Management |
ICC based, density and curves adjustment |
Computer System |
Win7 * Win8 |
Power Supply |
110/220V * 50Hz/60Hz |
File Forms |
bmp, tiff, jpg, pdf… |
Package Size |
2920 x 940 x 980 mm |
Net/Gross Weight |
280/320 kg |
