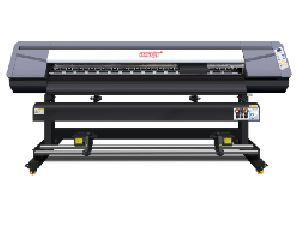

StormJet – 3180 TS Eco Solvent Printer 1,8 m
TECHNICAL SPECIFICATION |
||
Printhead |
Epson Dx5 |
Epson 3200 / Epson 4720 |
Printhead Quantity |
2 |
2 |
Max Resolution |
1440 dpi |
3200 dpi |
Number of Nozzles |
1440 (8*180) |
3200 (8*400) |
Printing speed |
2 pass – 45 m²/h |
2 pass – 80 m²/h |
|
4 pass – 32 m²/h |
3 pass – 20 m²/h |
|
6 pass – 26 m²/h |
4 pass – 15 m²/h |
|
8 pass – 18 m²/h |
6 pass – 30 m²/h |
Printing width |
1800 mm |
|
Media width |
2000 mm |
|
Color + gamut |
CMYK – 16,7 million |
|
Ink type |
Eco solvent ink * Water-based ink * Sublimation ink |
|
Printing Materials |
Flex Banner, Vinyl, PVC, Backlit, Canvas |
|
Heating System |
Front, bed and rear body heater and extra dryer |
|
Feeding method |
Roll to roll, leaf |
|
Rip Software |
Maintop * Photoprint * Onyx |
|
Color Management |
ICC based, density and curves adjustment |
|
Interface |
USB 2.0 * USB 3.0 |
|
Computer System |
Win7 * Win8 * Win10 |
|
Power Supply |
220V * 10A * 50Hz/60Hz |
|
File Forms |
bmp, tiff, jpg, pdf… |
|
Package Size |
2930 x 940 x 980 mm |
